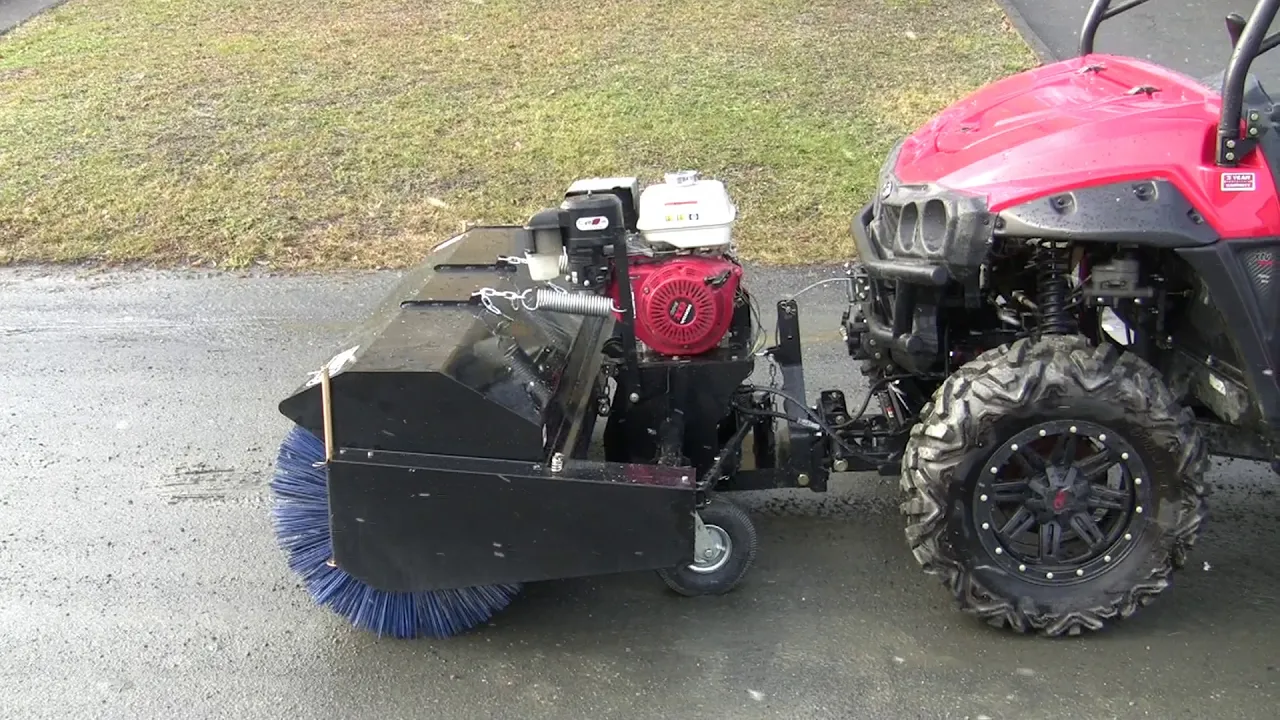

60" Universal Rotary Broom for ATV & UTV
Model: 700853
The 60" Universal Rotary Broom is a powerful, year-round cleanup attachment designed for ATVs and UTVs that demand professional-grade performance. Ideal for sweeping driveways, raking leaves, dethatching lawns, and removing light, fluffy snow, this broom delivers exceptional versatility with improved maneuverability and ground clearance.
Its redesigned layout positions the broom closer to the vehicle for tighter turning and better control. When lifting the unit, only the broom section raises while the engine remains on the ground—significantly reducing stress on the winch and extending component life. Pre-assembled at the factory, installation is fast and simple, with repeat mounting taking less than five minutes after the initial setup.
Key Features
-
60" Sweeping Width – Covers large areas quickly for efficient cleanup
-
Year-Round Utility – Sweeping, leaf raking, lawn dethatching, and light snow removal
-
Improved Maneuverability – Broom mounted closer to the vehicle for easier handling
-
Reduced Winch Load – Engine remains on the ground during lifting
-
Universal Compatibility – Fits most ATV and UTV brands with required subframe
Power & Performance
-
Engine: 14 HP Vanguard (manual pull start)
-
Cyclonic Air Filter – Protects engine from dust and debris buildup
-
Electric Blade Engagement – Smooth, reliable operation
-
Brush Dimensions: 18" diameter x 58" sweeping path
-
Brush Material: Stiff polypropylene for long service life
Control & Operation
-
Electric Lift – Uses vehicle winch
-
Factory-Installed Limit Switch – Prevents over-lifting
-
Electric Controls – Operated safely from the driver’s seat
-
Single Connector Plug – Quick electrical connection
-
Safe Start System – Prevents starting while unit is engaged
-
Operator Presence Control – Lanyard disconnect shuts down unit if operator leaves seat
Adjustability & Options
-
Manual Angling: 0° to 20° left or right (bearing-mounted for smooth operation)
-
Electric Angling: Optional upgrade (sold separately)
-
Brush Pressure Adjustment: Spring tensioners allow task-specific pressure and compensate for brush wear
-
Low Maintenance Design: Easy-access chain guard for lubrication
Durability
-
Heavy-Duty 10" Wheels – Handles uneven terrain with ease
-
Baked-On Powder Coat Finish – Long-lasting corrosion resistance
-
Parking Stand Included – Simplifies storage and supports optional side wheel kit for dethatching
Compatibility & Requirements
Requires:
-
Universal Subframe 700855
-
2" rear ball hitch
-
Winch rated at 1,000 lbs or greater
-
Electric lift via vehicle winch
Subframe Notes:
-
Subframe is interchangeable with Bercomac snowblower models Versatile, Premium, and Vantage
-
Subframe extension required if distance from front-most point of vehicle to rear hitch exceeds 100"
-
Will not fit vehicles exceeding 143" total measurement
Specifications
-
Weight: 540 lbs
-
Engine: 14 HP Vanguard
-
Start Type: Manual
-
Sweeping Width: 60"
Specifications subject to change without prior notice.
Warranty
-
Semi-Commercial Use: 1 Year
-
Professional / Rental Use: 90 Days
Important Notes
-
Pricing subject to change due to tariffs or import duties
-
Taxes, freight, and installation not included
-
Images shown for reference only; actual product may vary
