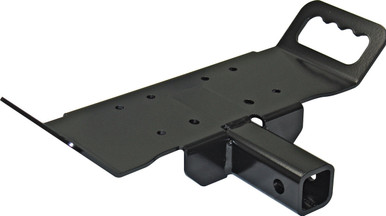

John Deere Gator 2" Receiver Winch Mount by KFI Products

SKU: 100620-EJD
In Stock: Guaranteed 3 Business Day Delivery

Add a Protection Plan

See plan details

Product Information

SKU: 100620-EJD
This John Deere Gator 2-Inch Receiver Winch Mount is built to last with heavy-duty 3/16” inch steel frame, metal bead blasted and powder-coated finish. Make mounting your winch a breeze after you’ve quickly installed the 2-Inch Receiver Mount by KFI. This mount is fully compatible with John Deere Gator models from 2002-2009 and includes all of the mounting hardware you’ll need to get this receiver installed. Drop in your winch you are ready to start hauling and towing heavy-duty equipment or trailers with your upgraded UTV.
Read More

Add loads of functionality to your John Deere Gator with the 2-Inch Receiver Winch Mount by KFI. Constructed of 3/16” steel and powder-coated after a metal bead blasting, this mount features the best possible makeup and easily takes on the harsh elements of the trail. With a simple installation, the 2-Inch Receiver Winch Mount for the John Deere Gator elevates the performance of your UTV to a whole new level. Simply lock in your winch, and you are ready to pull your buddy out of the mud or tow a trailer full of crops. This 2-Inch Receiver Winch Mount is made entirely in the U.S.A. and fits any Ranger models from 2002-2009. Install this mount with all included hardware and easy to follow instruction. Take your UTV to the next level with the John Deere Gator 2-Inch Receiver Winch Mount.

2-Inch Receiver Winch Mount Features:

  • Constructed of 3/16" steel
  • Metal bead blasted before powder coated for the best possible finish prep
  • Powder coated black for supreme durability
  • Complete installation instructions included
  • All mounting hardware included
  • Made in the U.S.A.

Compatible Winches:

  • KFI:ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
  • KFI:AS-50 / AS-50w
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
  • WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • WARN:AXON 35 / AXON 35-S / AXON 45RC
  • WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
    Will require Winch Spacer #101210 to fit.
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
  • WARN:RT40 / XT40
  • WARN:Vantage 4000lbs / Provantage 4500lbs
  • RAMSEY :ATV2500 / ATV3000
  • SUPERWINCH :Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • MASTER LOCK :1500lbs #2955AT
    -Requires a Fairlead with a 4.875" Bolt Pattern(available if needed #ATV-RF)
  • CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
  • BADLAND :2-Hole Winches
  • BADLAND :Standard Winches
  • BADLAND :WIDE Winches
  • CHAMPION :2-Hole Winches
  • CHAMPION :Standard Winches
  • CHAMPION :WIDE Winches
  • CHAMPION :14001 and 14061
    -Requires the correct Fairlead with a 4.875" Bolt Pattern (available if needed #ATV-RF)
    -Listed Models come with incorrect ATV Roller Fairleads
  • SMITTYBILT :XRC 3.0 / XRC 4.0
  • XGEAR:X3000 / X4000
    -4-Hole Standard (3.00" x 4.875" bolt pattern)
  • KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • VENOM:2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    -All with 3.00" x 4.875" Bolt Pattern mount-up
    - All with 3.00" x 6.600" Bolt Pattern mount-up
  • Traveller :2-Hole Winches
  • Traveller:1078311
    -Requires a Fairlead with a 4.875" Bolt Pattern(available if needed #ATV-RF)
  • Possibly Many others with the below standard Mounting patterns (call to confirm)
    - 4-Hole (3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern)
    -4-Hole WIDE (3.00" x 6.60" bolt pattern with Rollers that are 6.600" or 6.000" bolt pattern)
    -2-Hole (3.10" with Rollers that are 4.875" bolt pattern)

NOTE: This mount requires a Roller Fairlead Bracket that comes with most of the winches out there. If your winch kit did not come with a fairlead bracket you will need KFI part

*NOTE: This winch mount is not compatible with SuperATV Band winches
