SKU:
MR55KE-EJD
BRAND:
Kunz

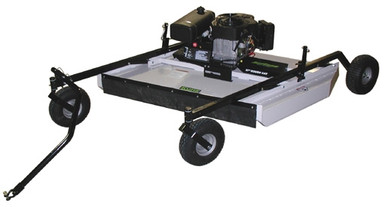

57 Rough Cut Mower is a great machine especially for marshy areas that mostly remain wet throughout the year. This is one of the best machines if you are looking for something that can mow around ponds and rough or irregular uneven ground where normally scalping would occur.
Read More
Top of the line 57″ rough cut model with a commercial grade twin cylinder electric start engine and electric clutch blade engagement. Works great behind an ATV, UTV or small tractor for larger acreage jobs.
57" Rough Cut Mower Features:
- 57″ Cutting Width
- 25 HP Kohler Commercial Grade Twin Cylinder Engine
- Commercial Grade Deck Assembly
- 4 Tire Design
- Quick Two Crank Height Adjust System
- Height Adjustment Range From 2″ to 8″
- Electric Clutch Blade Engagement
- Conservative 2″ Diameter Sapling Rating
- Pull Directly Behind or Fully Offset to the Side of the Tow Vehicle.
Specification |
|
| Class Mower | Rough Cut (Rear Discharge) |
| Engine Make | Kohler |
| Engine Model | Confidant OHV (Twin Cylinder with Cyclonic Air Filtration System) |
| Engine HP | 25 |
| Lubrication Method | Pressure with Filter (Low Oil Pressure Shut Off Included) |
| Electric Start (Battery not included) | Yes |
| Number of Mower Blades | 2-30" |
| Blade Tip Speed (ft/min) | 19,000 |
| Cutting Width | 57" |
| Cutting Height | 2.0" - 8.0" By Two Cranks |
| ATV Tongue | Standard (Direct Behind or Full Offset to Either Side) |
| Blade Engagement Clutch | Electric Clutch (200 ft-lb) |
| Deck Metal Thickness | 10 GA |
| Deck Top Plate Thickness | Two Separate 1/4 in. Thick Plates |
| Weight | 580 lbs |
| Pneumatic Fixed Rear Tire- Note: Flat Proof Urethance Tire Upgrade Available | 15/600x6, 4 Ply Tubeless |
| Pneumatic Front Tires on Casters- Note: Flat Proof Urethance Tire Upgrade Available | 5.30/4.50x6, 4 Ply Tubeless |
| Fuel Tank Size | 3 Gal. |
| Blade Spindles | |
| Shaft Size | 30mm |
| Bearing # | 6206-2RST |
| Drive Method | 1 B Section "V" Belt |
| Warranty | 1 Year Commercial (Engine - 3 Year Residential / 2 Year Commercial) |
The Wetlands Kit consists of an extra set of tires and mounting brackets
- Great for wetlands or marshy areas that stay wet all year around
- Works well in combination with small personal amphibious vehicles
- Kit more than doubles the tire surface area in contact with the ground
- Easy to install
- Works on all existing and new rough cut mowers
- The rough cut mower will not float with the wetlands kit installed. Water greater than 2-3" in depth should be avoided.
- With the Wetlands Kit installed the minimum cutting height is 3.5"-4".
The Electric Lift Kit consists of all of the mounting hardware, brackets, electric actuator and wiring with remote control panel.
- Great for constantly changing terrain and grass/brush heights
- Allows for quick cutting height changes on the go from the seat of the tow vehicle
- Raise up and over rocks and logs with ease
- Heavy duty 1500 lb linear screw actuator made by Linak
- Works on all existing and new rough cut mowers
The Floatation Kit consists of one additional front and rear tire, mounting brackets and hardware
- Great for mowing around ponds and on rough uneven ground where scalping would normally occur
- Clamping style receiver allows for adjustments from side to side with both the front and rear tires
- Pinned receivers make for quick kit removal when not needed
- Works on all existing and new rough cut mowers
