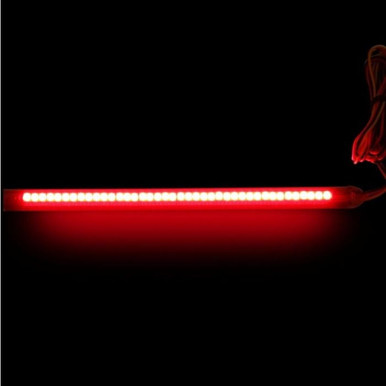

Dual Color TruFLEX® is a compact flexible LED lighting strip with surface mount dual color Amber/Red LEDs spaced only 1mm apart encased in a flexible, UV resistant Smoked tubing. Dual Color TruFLEX® is a 3 wire system (ground, red LED power, amber LED power); Select a dual converter to wire unit as run, brake and turn. Unique facet design increases viewing angle to 120 degrees. Each strip is 100% sealed with UV stable military grade RTV and includes 36" stranded copper 26 gauge wire. Comes pre-taped with 3M™ automotive grade tape for mounting on back surface. Operates on 9-14 VDC. Every 5 LEDs draw approximately 25mA. Available in a variety of lengths. Dimensions: 0.34" Wide X 0.30" High. Lifetime warranty against LED failure, water damage and UV damage. Typical applications would require the use of two Dual Color TruFLEX®, one for the left and the other for the right. Sold Each.
Dimensions:
- 0.34" W X 0.30" H
- 3 Wire System (Red Power, Amber Power, Ground)
- Use Dual Converter For Run/Brake/Turn
- Leds Spaced 1mm Apart
- 120 Degree Viewing Angle
- Every 5 Leds Draw~ 25ma
- Smoke Lens
- 36" Stranded Copper 26-Gauge Wire
- Lifetime Led Warranty
- Sold Each
