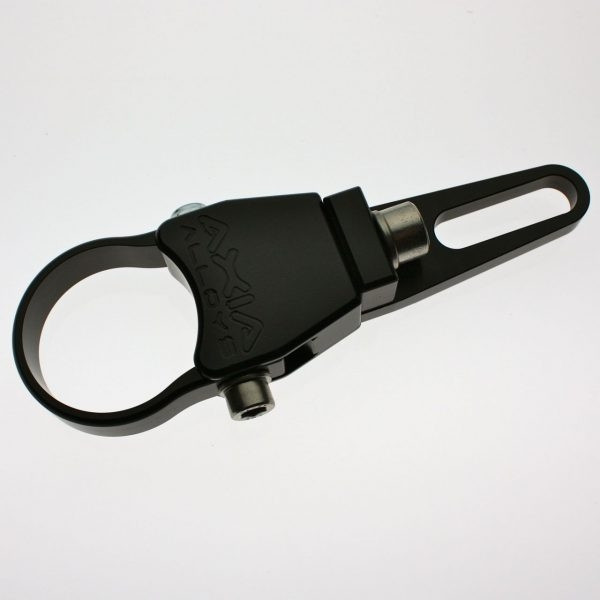

This 3/4″ extended mount is for end mount style led light bars with 10mm or 3/8″ fastener diameter (Other size slots available)
Requires 2 per light bar
10mm / 3/8″ slot on L bracket can position you end mount light bar Between 2.45″ and 3.55″ from the leading edge of the mounting bar to the center of the mounting screw
These pivoting clamps will allow you to mount Led light bars and traditional single post lights.
A simple solution for mounting on bumpers, wakeboard towers as well.
Sold Each
John Deere Gator and General OEM Roll cage Dimensions:
If not Profile tubing then the John Deere Gators use 1.75" roll cages.
2014 and older John Deere Gator Rear Harness Bar and Rear Bumper crossbars 1.5” (4 seat versions have a 1.25” rear top crossbar as well)
General (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) 1.75” top crossbar only (rearview mount)
Ranger (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) 1.75” rear harness bar only
Ranger Crew (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) Use 9” Bolt On mirror for rearview
