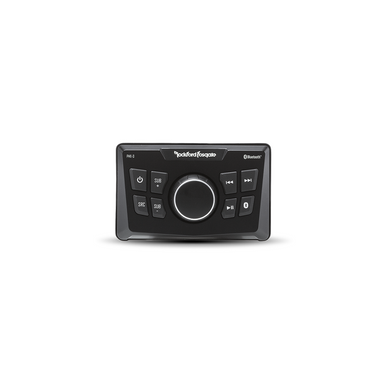

The Rockford Fosgate PMX-0 ultra compact digital media receiver is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. It features Bluetooth audio streaming for Apple and Android products as well as auxiliary audio input and is the ideal choice for that small system media receiver.
The PMX-0 is a ground up designed ultra compact digital media receiver ideal for small systems and vehicles. This unit Features Bluetooth streaming audio connectivity for both Apple and Android based devices, RCA Auxiliary inputs as well as Front, Rear and Sub RCA output connections. Control is provided through the water resistant rotary encoder knob and white LED backlit buttons and provide instant sub level control at your fingertips.
The front panel is IPX6 rated for water spray intrusion and features a conformal coated PCB circuit board protecting the vital electronics. We further validate the unit with 500 hours of testing under both the ASTM B117 and D4329 testing standards to make sure it will hold up under years of daily use exposed to the elements.
Ultra Compact Digital Media Receiver Features:
- Bluetooth streaming audio (A2DP) protocol version 1.0 installed
- Simple Secure Pairing (SSP)
- Waterproof Rotary Encoder Volume Control
- White LED Button Illumination
- Front Panel Sub Control
- Voice Command Confirmation
- Rear AUX-In (L/R)
- Rear USB With 1A Charging Only
- Epoxy coated circuit board for water resistance
- Upgradeable Firmware and Bluetooth Software via USB
- Easy 2" Mounting Hole and Compression U-Clamp Mounting
Specifications
- Operating Voltage
- 10.5 V - 16 V
- Power Output
- No
- Fuse Rating 3 A
- USB Capacity No
- Speaker Outputs No
- Made for iPod Models Bluetooth® Only
- Android Compatibility Bluetooth® Only
- Device Type Digital-Media Receiver
- Display Size N/A
- SiriusXM-Ready® No
- Pandora® Internet Radio No
- Bluetooth® Yes - 3.0, AVRCP & A2DP
- USB Version 1A (Charging Only)
- USB Output Current Yes
- USB Charging N/A
- Multi-Zone/Multi-Source No
- RCA Output Voltage 2 V
- RCA Output Impedance 500Ω
- Dimensions (HxWxD) H2.6" x W4.1" x D2.5"
- Clock No
- Speaker Outputs N/A
- RCA Outputs N/A
- Speaker Output THD+N <1.0
- AUX Input Yes
- Steering Wheel Control Ready No
- Frequency Response 20 Hz to 20 kHz
- Back Panel Cutout 2" (52mm)
- Shipping Weight 1.15 Lbs. (0.52 Kg)
