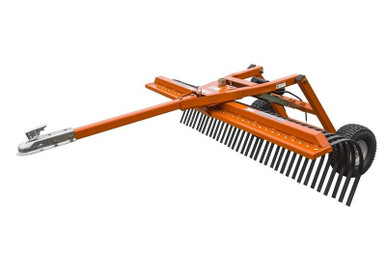

Quadivator UTV landscape rake is a heavy-duty rake designed for UTVs but can also be used with heavier and more powerful (800cc and up) ATVs, small tractors, or any other vehicle equipped with a 50 mm / 2'' hitch ball. The landscape rake is suitable for landscaping residential and commercial lots, leveling driveways and parking lots, maintaining riding grounds and animal enclosures and also for smaller jobs, which require a compact and light weight solution. The working angle and height of the landscape rake is easily adjustable allowing it to be used on various terrain. The landscape rake attached to a UTV is capable enough for small and medium scale jobs making work simple and fast.
The UTC landscape rake comes standard with 36 heavy-duty spring steel heat treated tines and a manual lift kit.
Landscape Rake Features:
- Heavy duty square tube steel frame structure.
- Galvanized and powder coated surfaces.
- 36 spring steel heat treated tines.
- Five pivoting position settings enable straight raking or
- working at 15 or 30 degrees in either direction.
- Rear mounted wheels have pinned axles allowing 4 different mounting positions on each side for raising either side with
- respect to the other.
- Quick and easy to switch between working and transportation positions.
- Manual lift kit included.
- Optional 12V DC electric / hydraulic actuator or hydraulic power unit to lift and lower the cultivator without leaving the seat.
- Complete user guide & safety instructions included.
Specifications:
- Material:Galvanized and powder coated square steel frame
- Dimensions:L 2200 mm x W 1800 mm x H 700 mm
- L 86.6 in x W 70.9 in x H 27.6 in
- Working width:1800 mm / 70.9 in
- Tine height:380 mm / 15 in
- Tyres:15x6.00-6
- Weight:145 kg / 320 lb
